Archergas - Standard Hot Water Pump - 15-60/130

Product code: ARDHW15

Out of stock. For availability or alternatives, please contact us.

• Leading Equivalent: SB30 & UPS 15-15N
• Maximum Head: 6 Meters
• Port to Port Distance: 130mm
• Connection Size: 1 ½”
• Maximum Flow Rate: 65 Litres Per Minute
• Maximum System Pressure: 10 Bar
• Energy Efficiency Index Rating: ≤ 0.20
• Material: Stainless Steel
• WRAS Approved Drinking Water Circulator
• WRAS Approved Bronze Pump

£159.60 inc VAT

£133.00 ex VAT

Each

Each (1)

Quantity

Click & Collect Delivery

×

Hire Date

Updating the hire contract date will apply to all the items in your basket.

Accept Cancel

Downloads

Installation Instructions (PDF)

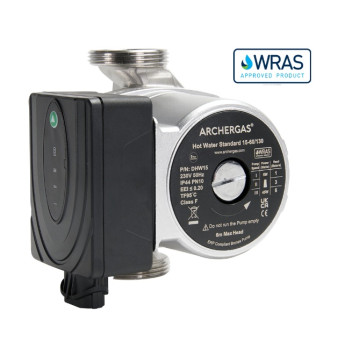

The Archergas® Hot Water Standard is a WRAS Approved Domestic Hot Water Pump (Secondary Return/Bronze Pump) that produces a maximum head of 6 meters and has a standard 1 1/2" threaded connection. As with all Archergas® circulators, it is fully ERP compliant with an impressive energy efficiency index rating of less than 0.20. The DHW15® is a standalone circulator with 4 modes of control and a 130mm port to port size making it ideal for the replacement of existing Hot Water Pumps in domestic hot water systems, as well as new installations. Due to our quality focused approach to manufacturing and our use of high end component materials, this circulator is resistant to condensation, corrosion, high pressure and high temperatures. It also comes with a 5 year guarantee and can be used as a direct replacement for a large number of other models, some of which are listed below:

Replaces:

Make | Model

Grundfos | UPS 15-50N (130)

Wilo | SB30/SB30G, SB5 &SB60

DAB | EVO VS 65/150 B

BritTherm | B1-B4 & S1-S5

Tower | BRZPUMP

Stuart Turner | 15/60B DHW

Circulating Pumps | SE20B & SE60B

IBO | OHI15-60/130

IMP Pumps | SAN 25/60-130 & NMT SAN PLUS

Specification:

Part Number: DHW15

Connection Size: 1 ½”

Port to Port Distance: 130mm

Maximum Head: 6 Meters

Maximum Flow Rate: 65 Litres Per Minute

Maximum System Pressure: 10 Bar

CE/UKCA Approved: Yes

WRAS Approved: Yes

Energy Efficiency Index Rating (EEI): ≤ 0.20

Speed Control: 4 Modes

Protection Class: IP44

Temperature Class: TF95ºC

Insulation Class: F

Supplied With: Rubber Washers x2 & Quick Connect Adaptor x1

Material: Stainless Steel

Colour: Silver

Weight: 2.0kg

The benchmark for the most efficient circulators is EEI ≤ 0.20

DHW15® is a registered trademark owned by Archergas Limited

This standalone circulator is not for head changes or use inside boilers
