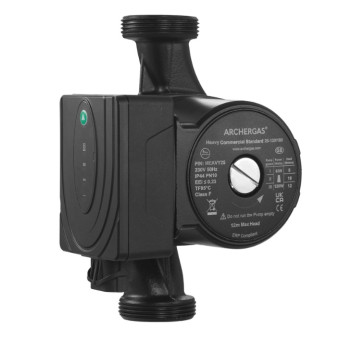

Archergas - Standard Heavy Commercial Pump - 25--120/180

Product code: ARHEAVY25

Out of stock. For availability or alternatives, please contact us.

• Maximum Head: 12 Meters
• Port to Port Distance: 180mm
• Connection Size: 1 ½”
• Maximum Flow Rate: 109 Litres Per Minute
• Maximum System Pressure: 10 Bar
• Speed Control: 4 Modes
• Energy Efficiency Index Rating: ≤ 0.23
• Material: Cast Iron
• CE/UKCA Approved: Yes
• Supplied With: Washers x2 & Adaptor x1

£216.00 inc VAT

£180.00 ex VAT

Each

Each (1)

Quantity

Click & Collect Delivery

×

Hire Date

Updating the hire contract date will apply to all the items in your basket.

Accept Cancel

Downloads

Data Sheet (PDF)

The Archergas® Heavy Commercial Standard produces a maximum head of just over 12

meters with a standard 1 1/2” threaded connection. As with all Archergas® circulators, it is

fully ERP compliant with an impressive energy efficiency index rating of less than 0.23. The

pump has 4 modes of control and a standard 180mm port to port size. The HEAVY25® is

suitable for radiators, underfloor heating, cooling, solar, recirculation (non-potable) and air

source heat pump systems. Due to our quality focused approach to manufacturing and our

use of high end component materials, this circulator is resistant to condensation, corrosion,

high pressure and high temperatures. It also comes with a 5 year guarantee and can be

used as a direct replacement for a large number of other models, some of which are listed

below:

Replaces:

Grundfos | Magna (25-100 & 25-120 Models)

Wilo | Yonos MAXO 25/0,5-12

DAB | Evoplus 110/180 XM

Antares | Type S70, S80, S89, Alfamax RS 25/60 & Alfamaior RS 25/80 (180)

Lowara | TLCHN 20-12L 180mm (1~ 230V)

BritTherm | P6, S6 & SUPER25

Specification:

Part Number: HEAVY25

Connection Size: 1 ½”

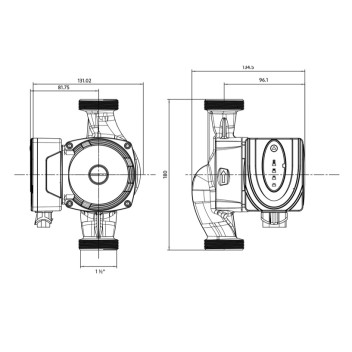

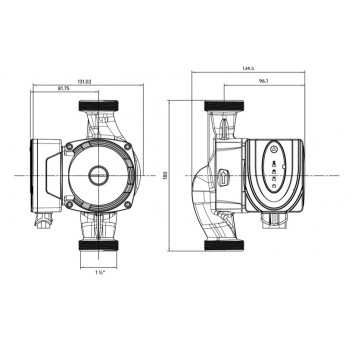

Port to Port Distance: 180mm

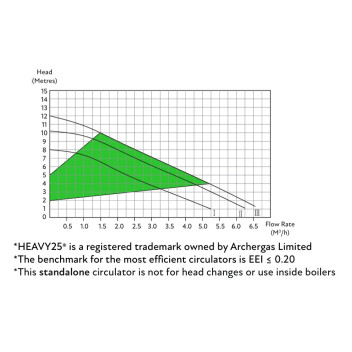

Maximum Head: 12 Meters

Maximum Flow Rate: 109 Litres Per Minute

Maximum System Pressure: 10 Bar

Energy Efficiency Index Rating (EEI): ≤ 0.23

CE/UKCA Approved: Yes

Speed Control: 4 Modes

Protection Class: IP44

Temperature Class: TF95ºC

Insulation Class: F

Supplied With: Rubber Washers x2 & Quick Connect Adaptor x1

Material: Cast Iron

Colour: Jet Black

Weight: 2.3kg

The benchmark for the most efficient circulators is EEI ≤ 0.20

HEAVY25® is a registered trademark owned by Archergas Limited

This standalone circulator is not for head changes or use inside boilers
