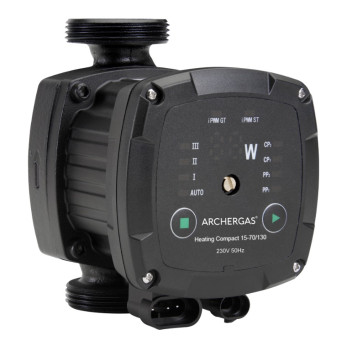

Archergas - Heating Compact 15-70/130 (Width Modulating Circulator)
- Maximum Head: 7 Meters
- Port to Port Distance: 130mm
- Connection Size: 1 ½”
- Maximum Flow Rate: 65 Litres Per Minute
- Maximum System Pressure: 10 Bar
- Speed Control: 10 Modes
- Energy Efficiency Index Rating: ≤ 0.20
- Material: Cast Iron
- CE/UKCA Approved: Yes
- Supplied With: Washers x2 & Straight Con
Downloads
The Archergas® Heating Compact is a Domestic Heating Pump that produces a maximum head of 7 meters and has a standard 1 1/2" threaded connection. It has 10 modes of operation and a 130mm port to port size making it ideal for the replacement of existing Heating Pumps in domestic heating systems and for new installations. The COMPACT15® is also perfect for integration into appliances like boilers or heat pumps. As a semi-automatic modulating circulator, the Heating Compact is able to modulate flow based on system demand. As with all Archergas® circulators, it is fully ERP compliant with an impressive energy efficiency index rating of less than 0.20. It also comes with a 5 year guarantee and can be used as a direct replacement for a number of other models, some of which are listed below:
Replaces:
Make | Model
Grundfos | UP, UPS 4m, 5m, 6m, UPSD, UPS2, UPM3 & UPS3
Lowara | Ecocirc, Ecocirc Basic & Premium 25-40 & 25-6 (130)
Wilo | Yonos Pico 15/1-6-130, Yonos Para 25/6 & 25/7, Gold, Gold Star, Gold 50, 60 & RS25
Embrass Peerless | Eclipse CFA 25-50 & 60-130
DAB | VA55/130, VA65/130, Evotron 60/130, Evosta 40/70
Circulating Pumps | CP50, CP60 & Myson LA, SD, CP53 & CP63
BritTherm | Domestic Standard, Domestic Pro & Black Edition Pro 15-60/130
Salus | MP100A & MP200A
Boiler M8 | RS25/6G-130, RS25/6EAR-130, GPA25-6 II AC & GPD25-6S-130
Stuart Turner | ST 15/60 (130)
Antares | Type S40 to S60, Alfamax RS & AS 15/40 to RS & AS 25/60 (130)
Tower | APUMP+
Specification:
Part Number: COMPACT15
Connection Size: 1 ½”
Port to Port Distance: 130mm
Maximum Head: 7 Meters
Maximum Flow Rate: 65 Litres Per Minute
Maximum System Pressure: 10 Bar
Speed Control: 10 Modes
CE/UKCA Approved: Yes
Energy Efficiency Index (EEI): ≤ 0.20
Protection Class: IP44
Temperature Class: TF95ºC
Insulation Class: F
Supplied With: Rubber Washers x2 & Quick Connect Adaptor x1
Material: Cast Iron
Colour: Jet Black
Weight: 1.8kg
The benchmark for the most efficient circulators is EEI ≤ 0.20
COMPACT15® is a registered trademark owned by Archergas Limited
