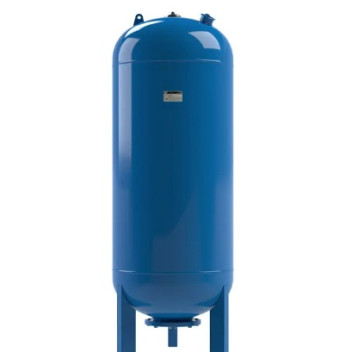

Zilmet - Ultra-Pro 16 Bar - 500L

Product code: 1100050053

2-4 Days Delivery *Supplier Dependent*

• 500 Litre Potable Expansion Vessel
• Vertical with 1"1/2 Connection
• Max Working Pressure: 16 Bar
• Max Working Temperature: 70°C
• Pre Charge: 2 Bar
• Diameter: 750mm
• Height: 1650mm
• Height Connection: 188mm

£3,412.66 inc VAT

£2,843.88 ex VAT

Each

Each (1)

Quantity

Click & Collect Delivery

×

Hire Date

Updating the hire contract date will apply to all the items in your basket.

Accept Cancel

Downloads

Technical (PDF)

• Max Pressure: 16 Bar
• Pre Charge: 2 Bar
• Max Operating Temperature: 70°C
• Peak Working Temperature: 99°C
• Suitable for water pumps and booster systems
• Galvanised steel flanges
• Stainless steel threaded connection
• Fully certified according to the PED 97/23/CE
• 100% factory tested
• Fixed Butyl / EPDM membrane at both ends of the vessel – prevents contact between the vessel and membrane
• MIG welded carbon steel shell
• Externally finished in hard wearing epoxy powder coating
• Replaceable membrane
• CE 0036
